THREE-LAMP UV DRYER

Technical Parameters

Product No. : PRT-U3106/PRT-U3113

Effective working width : 620mm-1320mm

Effective working thickness : 2-80mm

Maximum working length: 300mm

Transmission speed : 0-20m/min

Transmission power : 0.75KW

Fan power : 0.4KW×3/0.75KW×3

Power of modulator tube : 5.6KW×3/11KW+9.6KW×2

External dimension (L×W×H) : 2500×1200/2500×190

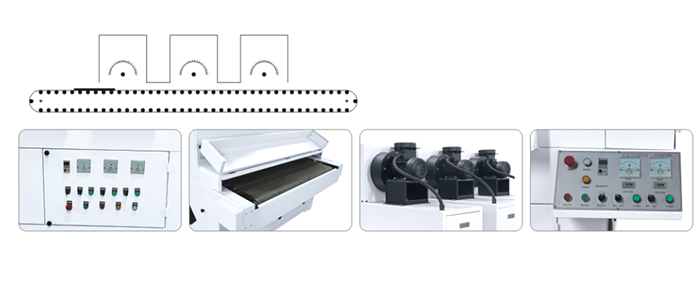

Performance features

This machine is applicable for instant drying after using UV paint surface coating.

The independent lamp box is equipped with high power exhaust for good ventilation, which can effectively extend the service life of UV lighting, transformer and electric capacity.

Optional human-computer interface with precise auto reverse, independent electricity box and other full-automatic configurations.
